Enclosure points of focus and unique features
The list below includes some of the most important features our enclosures have to offer, most of which are not
found on any other product in the same category on the market. Please concentrate on these points when comparing
with other products or when explaining the benefits of using these enclosures to your clients.
• Weight: 15.5 (7.0 Kg.s) to 16 LBS (7.25 Kg’s) empty and less than 20 LBS (9.0 Kgs) for a full system
• Construction: 100% Aluminum alloy construction
• ATX or SBC form factors
• Complete Thermal Management System with up to 8 cooling fans (3 standard, 5 optional) for any thermal scenario
• 6 (ATX) for 8 (SBC) full length expansion slots with peripheral drives already installed
• 6 Drive bays: 1x5.25”, 1x3.5”, 2x2.5”, 1 slim floppy and 1 slim CDROM
• LCD screen: Notebook type. Grade A. 15” or 17” Wide screens
• TOUCH-SCREEN option for all 15” screens
• Resolution: 1024 x 768 or 1600 x 1200 Pixels for 15” and 1440 x 900 pixels for 17” screens
• Brightness: 200 Nits, 500 Nits Hi-Brite and 1500 Nits Sunlight readable for 15” and 200 Nits for 17”
• 300W or 400W high-end power supply unit with 100% output at 50C (128F), Switch-select or Autoswitching.
100,000 hrs MTBF (about 11.4 years of continuous operation!)
• Keyboard: Full-Sized 105 keys with break-proof zinc hinges and highly accurate touch pad. Cable connected to front panel
• Safety features: Thermal (auto) shutdown at 65C (148F). Thermal and fan alarms.
• Theft proof Kensington lock
• Video options: A/D converter, DVI interface, S3 Savage 16 MB, ATI Mobility Radeon M7, M9 and M10 boards
• Front accessible USB ports and Audio connectors
• Monitoring and diagnostic tools: fan speed and control, thermal, clogged filter (M-SP and M-IP only)
• Revolutionary card retention mechanism with up to 4 hold down brackets or a combination thereof
• Ergonomic chassis design
• Pass 3 foot (92 cm) drop test (IP and M-IP) and 18” (46 cm) drop test (SP and M-SP)
• All components tested before shipping
• Stainless steel external screws with inserts

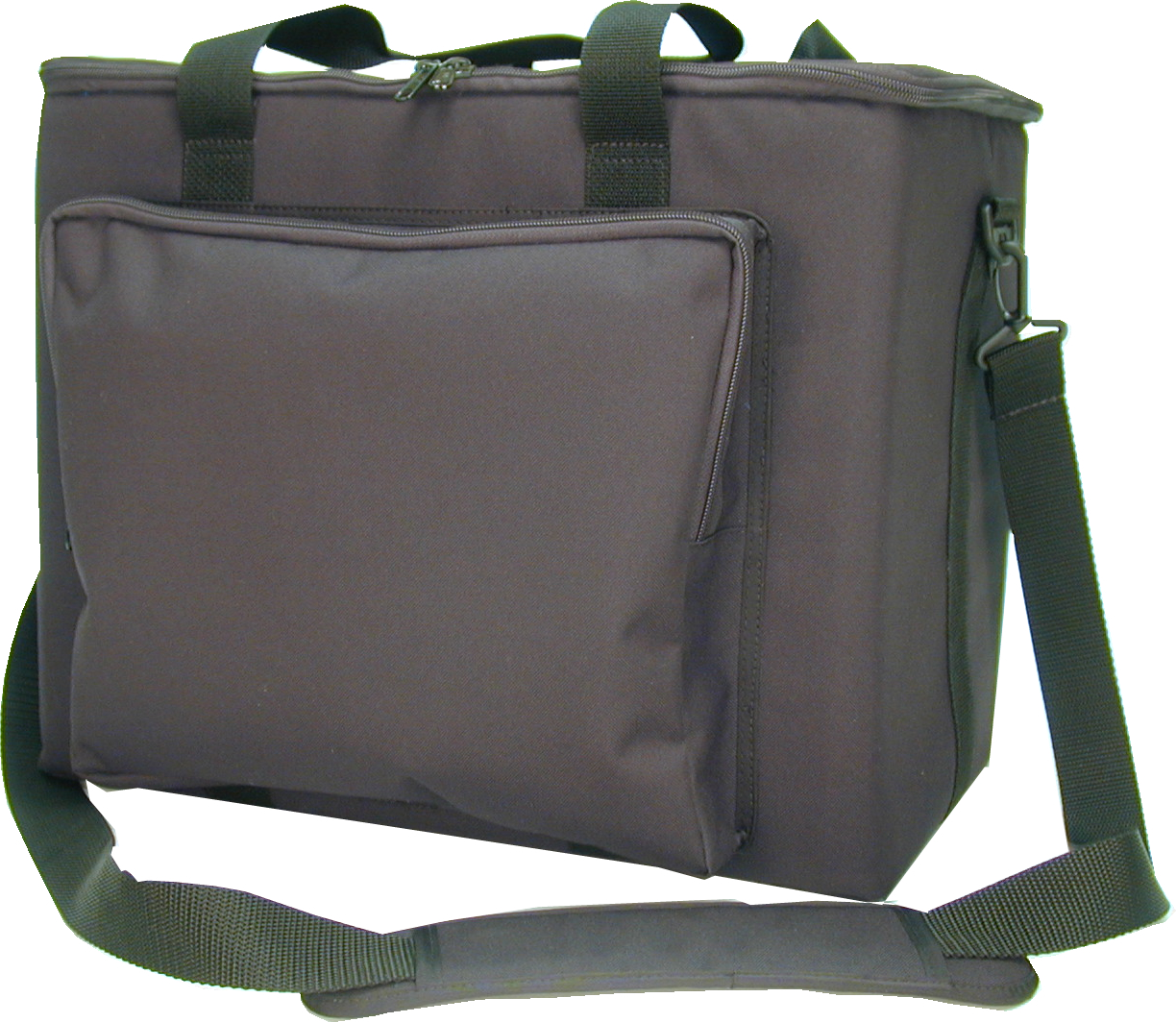

• Deluxe soft padded carrying case and ATA 300 cat. 1 cargo cases (accessory)
• Optional customized single or dual color logo on chassis and carrying case
• Full list of accessories
|
